Decoding the Classics: Why Your Williams Arcade Machine Needs a Modern Upgrade

If you own a classic Williams arcade machine, you already know the feeling. You walk into your game room, the neon lights are humming, and you flip the switch on your prized Defender or Robotron cabinet. You are ready to save the human race or rescue some space family members. But instead of that iconic explosion of sound and color, you get a garbled mess of pixels or a screen that looks like it is trying to communicate from a different dimension.

Most of the time, the culprit is not a ghost in the machine. It is a tiny, decades old piece of silicon called a decoder. These little chips are the unsung heroes of the arcade world, but they were never meant to last forever. Here at GeekPCB's, we believe that your classic hardware deserves a second lease on life. Let’s dive into why these decoders matter and how a modern SMD upgrade will keep your machine running until the actual year 2084.

The Problem with Vintage Silicon

Back in the early eighties, Williams was the king of the arcade. They built machines that were fast, loud, and incredibly complex. To make those games work, they used PROM chips like the 82S141 to handle decoding tasks. These chips were cutting edge at the time, but they have a few nasty habits.

First, they run hot. If you touch an original decoder after an hour of gameplay, you might leave a fingerprint behind on the chip surface. Heat is the enemy of electronics. Over forty years, that heat causes the internal structure of the chip to degrade. Second, they are power hungry. They pull a lot of current from your power supply, which adds stress to your entire system.

When these decoders start to fail, you might see "jailbars" on your screen, weird color shifts, or the game might simply refuse to boot. Finding original replacements is getting harder and more expensive every day. You could spend hours scouring auction sites for a "new old stock" chip that might be just as crusty as the one you are replacing, or you could step into the future with GeekPCB's.

Enter the Defender Decoders (2 & 3)

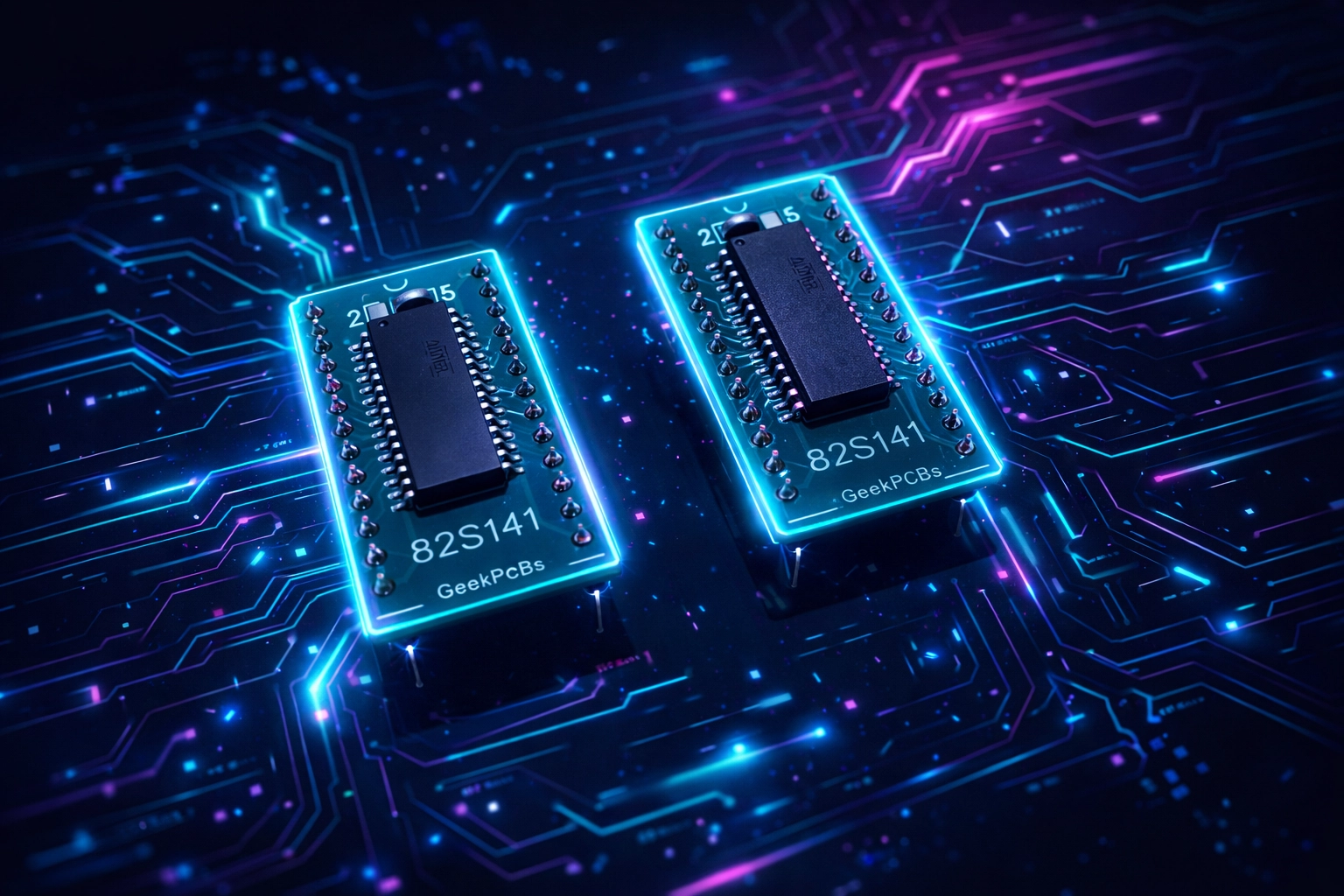

The Williams Defender Decoder Replacement is designed specifically for the game that started it all. Defender is notorious for being a bit of a diva when it comes to hardware stability. The original 82S141 decoders at positions 2 and 3 on the board are common failure points.

Our replacement boards are not just copies; they are upgrades. We have taken the original logic and moved it onto a modern PCB using Surface Mount Device (SMD) technology. This means the footprint is small, the profile is low, and the reliability is through the roof.

When you swap out your old, toasted chips for these shiny new GeekPCB's versions, you are doing more than just fixing a bug. You are lowering the thermal load on your logic board. Because these modern components are so much more efficient, they barely get warm. A cooler board is a happy board, and a happy board means more time shooting aliens and less time poking around with a multimeter.

Stargate: The Next Frontier (Decoders 4 & 5)

If you have moved on from Defender to the even more complex world of Stargate, you know that the hardware only got more intense. Stargate relies on Decoders 4 and 5 to keep the action flowing.

Installing our Stargate decoder replacements is a breeze. We have designed these to be direct drop in replacements. No messy wiring and no hacking your original board. You just pull the old chips and pop these in. It is so easy even a space grunt could do it.

The beauty of our SMD design is the precision. Original PROMs can sometimes have timing drifts as they age, leading to subtle glitches that are hard to track down. Our modern logic gates are snappy and precise, ensuring that your Stargate experience is exactly how the developers intended back in 1981. Plus, they look sexy sitting on your board, which is always a bonus.

The Multi Game Legends: Robotron, Joust, and More

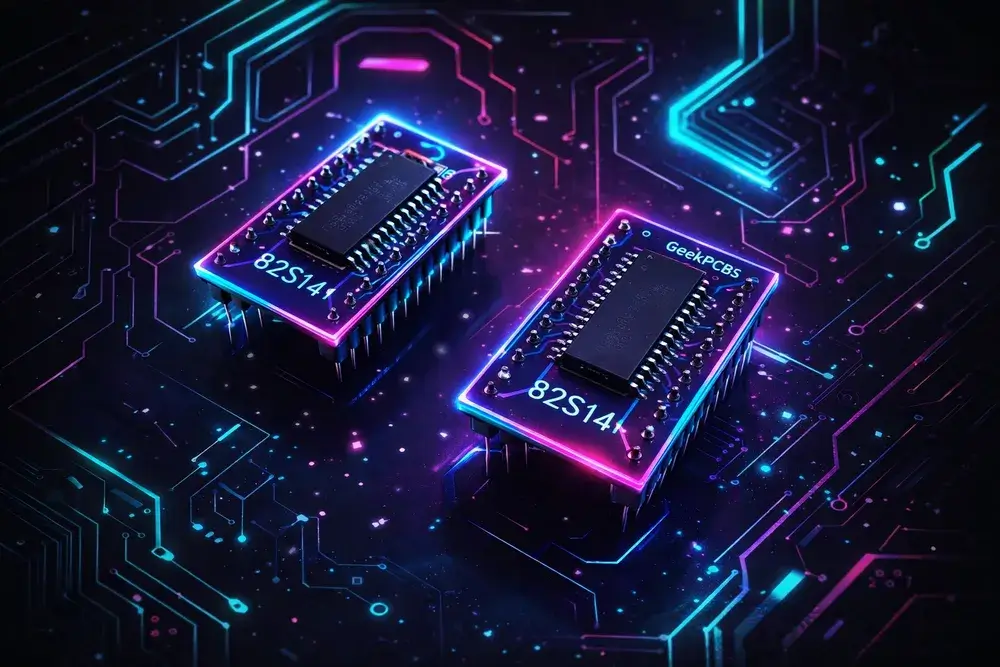

Williams had a legendary run of games that shared similar hardware architectures. If you own a Robotron 2084, Bubbles, Joust, or Splat!, you are dealing with a specific set of Decoders at positions 4 and 6.

These games are the high speed champions of the arcade. Robotron, in particular, is a twitch shooter that demands absolute stability. Any hiccup in the decoding logic can result in a lost life, and in Robotron, a lost life usually means game over very quickly.

Our 4 and 6 decoder set is built to handle the intense data throughput of these fast paced titles. By using high quality SMD components, we ensure that the signal integrity is rock solid. No more random resets or flickering sprites when the screen gets crowded with Grunts and Hulks. You get stable gameplay, period.

Why Modern SMD Technology is the King

You might be asking, "Geek, why should I care about SMD tech?" It is a fair question. After all, the original through hole chips worked for a long time. But technology has moved on for a reason.

1. Thermal Efficiency: As mentioned before, SMD components generate significantly less heat. This prevents the PCB from warping and stops the "baking" effect that destroys nearby capacitors.
2. Longevity: Modern manufacturing processes for SMD parts are much more refined than the old PROM burning methods. These parts are rated for thousands of hours of use without degradation.
3. Stability: SMD technology offers better resistance to vibration and physical shock. If you are moving your cabinets around or if you have a particularly rowdy arcade party, these boards will stay seated and functional.
4. Power Draw: Modern chips use a fraction of the power. This puts less strain on your vintage power supply, which is likely already working overtime to keep the rest of the machine alive.

Mistakes happen during restoration, and that is part of the DIY journey. But using the right parts from the start makes the process much more rewarding. When you see that crisp, clean image on your CRT, you will know the upgrade was worth every cent.

The Ultimate Move: The Complete Williams Decoder Package

If you are like most collectors, you don't just have one Williams machine. You have a row of them, or perhaps a multi game setup that needs a total refresh. Or maybe you just want to be prepared for the inevitable day when the rest of your original decoders decide to retire.

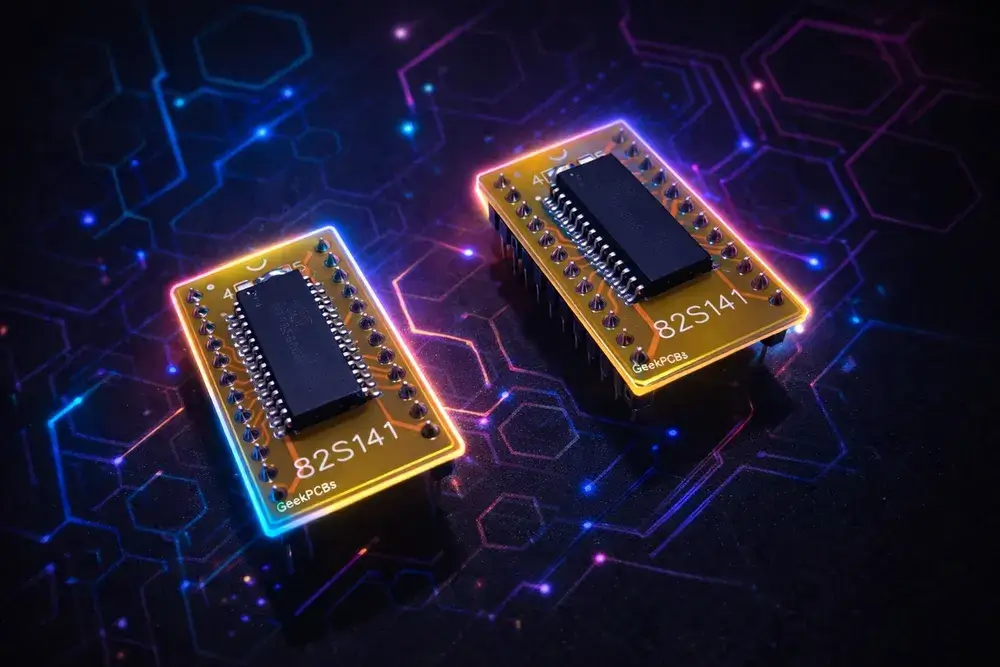

This is where the COMPLETE PACKAGE DEAL comes into play. This set includes all the decoders you need to fully outfit your Williams boards. It is the absolute best value for money and ensures that your entire collection is running on the same high standard of GeekPCB's hardware.

Buying the package deal is a bit of a no brainer. It saves you money compared to buying them individually, and it saves you the headache of multiple shipping orders. Think of it as an insurance policy for your arcade's future. You get the 82S141 replacements for Defender, the Stargate specific chips, and the Robotron/Joust set all in one go.

Ready to Build Something Awesome?

Restoring these machines is a labor of love. We know the frustration of a broken board and the joy of a successful repair. That is why we do what we do at GeekPCB's. We want to provide you with the tools and parts to make your arcade dreams a reality.

Whether you are a seasoned pro with a soldering iron or a newcomer looking to make your first repair, our decoders are designed to be accessible and effective. We take pride in the fact that our boards are tested, reliable, and made for makers like you.

Don't let your classic Williams cabinet sit in the corner collecting dust because of a failed decoder. Give it the modern heart it deserves. Head over to our shop and grab the parts you need to get back into the game.

Frequently Asked Questions

Do I need to program these decoders myself? Nope! All our decoder replacements come fully programmed and ready to use. Just plug them into the appropriate sockets and you are good to go. Enjoy the read it is riveting information, but the installation is even better.

Are these compatible with bootleg boards? Our decoders are designed based on the original Williams schematics. While they work perfectly with original boards, compatibility with bootlegs can vary depending on how closely the bootleg followed the original design. If you are unsure, feel free to reach out to us.

Is soldering required? If your original chips are already in sockets, then no soldering is required. You simply pry out the old chip and press in the new GeekPCB's module. If your chips are soldered directly to the board, you will need to desolder them and we highly recommend installing a socket in their place for easy future maintenance.

Will this fix my "Rug" pattern on boot? While the "Rug" pattern can be caused by many things (like RAM issues), faulty decoders are a frequent contributor to boot failures. Refreshing your decoders is a great step in a full board overhaul.

Classic arcade gaming is all about the experience. By upgrading to modern SMD technology, you ensure that the experience remains authentic, stable, and fun for years to come. Check out our full range of Tech DIY boards to see what else we can do for your collection. Keep those pixels popping and those high scores climbing!
