Stern MPU-200 Dual 5101 NVRAM
Two RAM replacements. One convenient module.

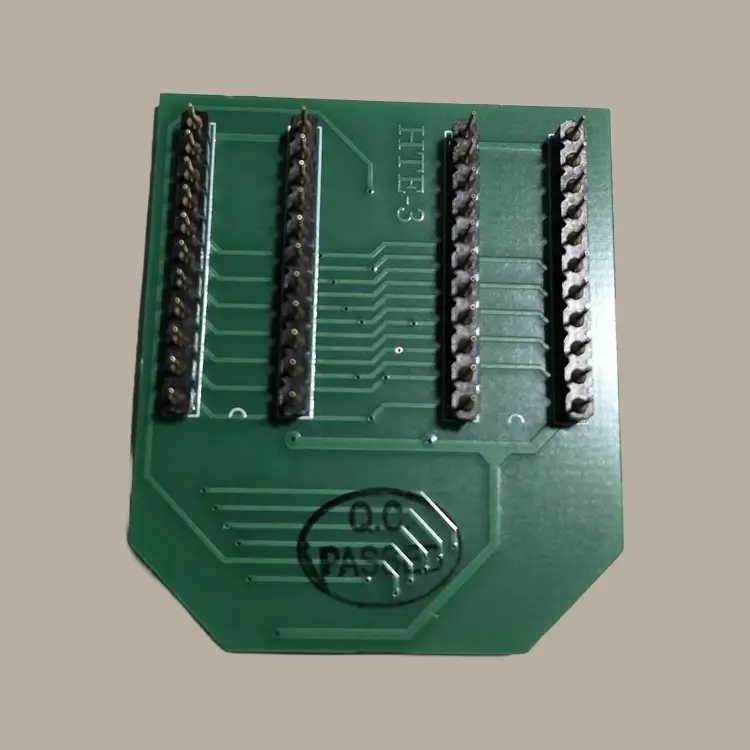

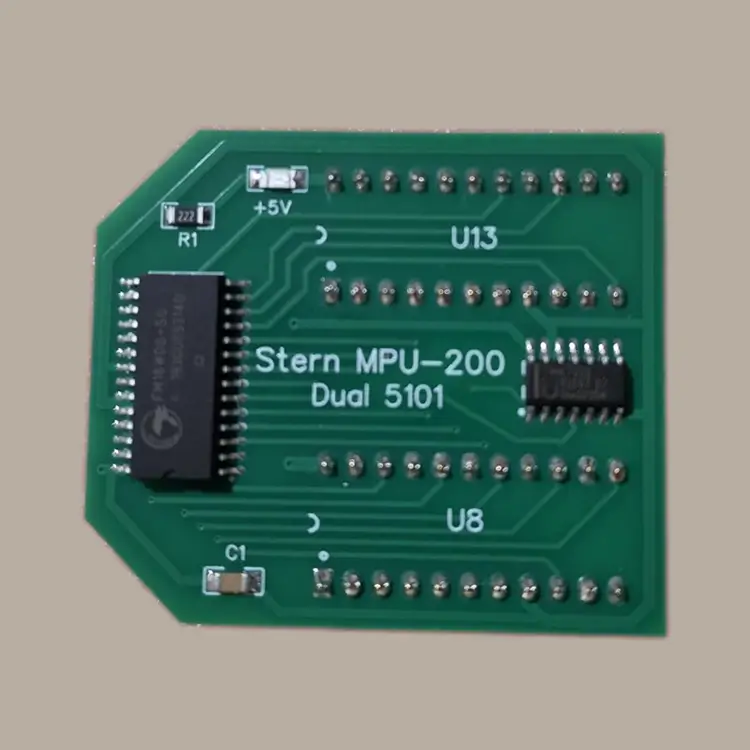

The GeekPCBs Stern MPU-200 Dual 5101 NVRAM replaces the two original 5101 RAM ICs located at U8 and U13 with a single module.
Instead of purchasing two separate NVRAM replacements, this combined design handles both memory locations in one unit—saving money and simplifying your upgrade.
Why upgrade?
- One module replaces both 5101 ICs: Designed for the U8 and U13 locations on the Stern MPU-200.
- Battery free memory retention: Keeps saved information when the machine is switched off, without requiring battery backup.
- Cost effective design: No need to purchase two separate NVRAM modules.
- Built-in +5V LED: Gives a clear visual indication that power is present at the module.
Built-in +5V Power Indicator
We’ve added a red LED to our new NVRAM range, giving you a convenient visual power indicator that these vintage MPU boards originally lacked. The LED illuminates when the module’s +5V supply is present, making it easy to check power at a glance.
The LED indicates power is present; use a multimeter to confirm the voltage is within specification.
Installation
Remove both original 5101 RAM ICs from U8 and U13, then fit the dual NVRAM module in their place, with the machine off.
Designed specifically for the Stern MPU-200.
Stern MPU-200 Game List
- Meteor
- Ali
- Big Game
- Cheetah
- Flight 2000
- Galaxy
- Nine Ball
- Quick Silver
- Seawitch
- Star Gazer
- Catacomb
- Freefall
- Iron Maiden
- Lightning
- Split Second
- Viper
Please check your board before ordering:
This module is designed for the original Stern MPU-200 with 5101 RAM ICs at U8 and U13. Machines fitted with replacement MPU boards may require a different NVRAM solution.
