The 'Don't Hack Your Cabinet' Guide: Resurrecting Nintendo & Classic PCBs with JAMMA Adapters

Look, we’ve all seen it. You open the back of a newly acquired vintage arcade cabinet, expecting to see a pristine wiring loom, and instead, you find a crime scene. A "wire-cutter massacre" where some previous operator, back in 1989, decided that the easiest way to swap Donkey Kong for Street Fighter II was to chop every single connector off and use electrical tape to twist the wires together.

It’s enough to make a grown geek cry.

At GeekPCBs, we have a very simple philosophy: Stop hacking your cabinets. Whether you’re a hardcore collector or a weekend warrior fixing up your first machine, preservation is the name of the game. You want to play classic games on original hardware, but you don't want to destroy the history of the machine to do it.

That is where the magic of the JAMMA Adapter comes in. Think of it as a universal translator for your arcade cabinet. It allows you to take those legendary pre-1985 boards and plug them directly into a modern JAMMA-wired cabinet without touching a single pair of wire strippers.

The JAMMA Revolution (And Why It Left the Classics Behind)

For the uninitiated, JAMMA (Japan Amusement Machine and Marketing Association) became the industry standard around 1985. It was a godsend. It meant that any game board with a 56-pin edge connector could work in any cabinet with a 56-pin harness.

But what about the legends that came before? What about the Golden Age of the early 80s?

Companies like Nintendo, Capcom, and Data East all had their own proprietary pinouts. If you have an original Ghosts 'n Goblins board, it won’t just "plug in" to a JAMMA harness. Back in the day, operators would just hack the harness to make it work. Today, we know better. We use adapters. Because they look sexy, they work perfectly, and they keep your cabinet's value high.

Nintendo to JAMMA: Resurrecting the King of Kong

Nintendo is the big one. If you’ve ever tried to mess with an original Donkey Kong, Popeye, or Mario Bros. board, you know they are... well, difficult. Nintendo didn't just use a different connector; they did things their own way. They used different pin pitches, different power requirements, and, the biggest headache of all, inverted video signals.

If you try to wire a Nintendo board straight to a JAMMA monitor without a proper converter, your colors will look like a bad psychedelic trip from the 70s.

Our Nintendo JAMMA adapters are designed specifically to handle these quirks. They take that classic Nintendo output and translate it into something your JAMMA cabinet understands. It’s the ultimate "plug-and-play" solution for hardware preservation. You get the 100% authentic gameplay of the original PCB with the convenience of a modern setup.

Ready to bring Mario back to life? Check out our range of JAMMA adapters to find the right fit for your project.

The "Falcon" and the Bootlegs: A Special Case

Not all "classic" games are created equal. In the 80s, the arcade market was the Wild West. For every original board, there were dozens of "licensed" versions or bootlegs that used slightly different wiring.

Take Crazy Kong, for example. If you’ve got the Falcon Release, you can’t just use a standard Nintendo adapter. The pinout is different. That’s why we built the Crazy Kong JAMMA Adapter - Falcon Release.

Then there’s the Crush Roller Bootleg JAMMA Adapter. Crush Roller (or Make Trax) is a cult classic, but the bootleg boards are notorious for having weird wiring layouts. Our adapters are built to solve these hyper-specific problems. We’ve done the tedious work of tracing the pins, testing the voltages, and ensuring the ground planes are solid so you don't have to.

Capcom and Data East: The 80s Powerhouses

Before Capcom gave us the CPS1 system and Street Fighter, they had a "classic" pinout used for some of the greatest games ever made. We're talking Ghosts 'n Goblins, Commando, and Section Z.

Similarly, Data East was churning out hits like Robocop, Bad Dudes, and Sly Spy. These boards are tanks, they were built to last, but their pinouts are completely incompatible with JAMMA.

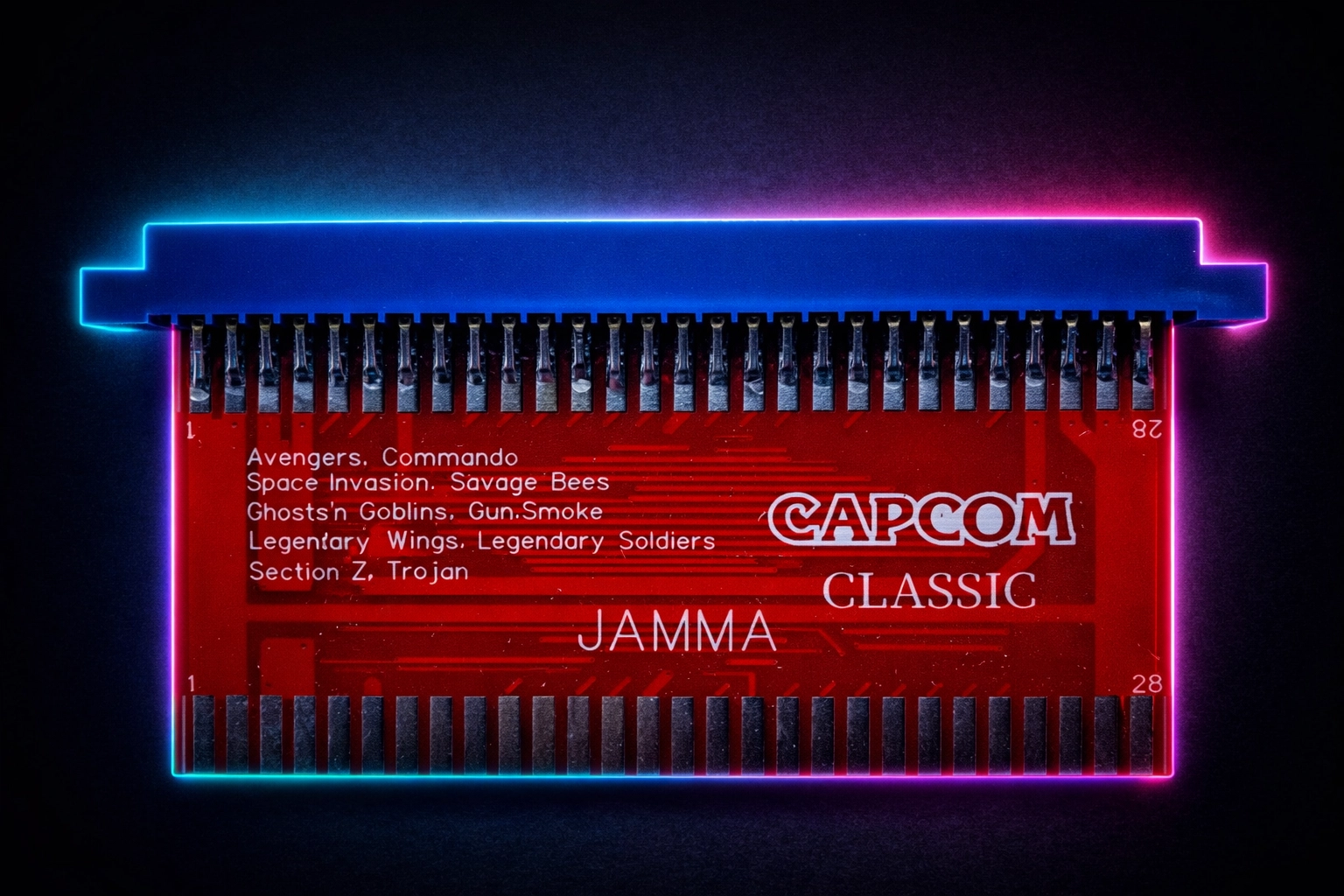

Using a Capcom Classic JAMMA Adapter or a Data East Classic JAMMA Adapter is the difference between a clean, professional restoration and a "hope this doesn't catch fire" DIY job. Our adapters feature:

• Clean traces: No messy jump wires or sloppy soldering.
• Solid connectors: High-quality edge connectors that won't lose tension over time.
• Gold-fingered PCBs: For maximum conductivity and corrosion resistance.

Why Build Quality Matters (No Cheap Junk Here)

You might see cheap, mass-produced adapters on auction sites for the price of a coffee. We’ve seen them too. Usually, they’re made with thin PCB material that flexes and cracks, or the traces are so thin they can’t handle the 5V current required by these power-hungry vintage boards.

At GeekPCB's, we take pride in the "Geek" part of our name. The team here ensure that every board we sell is something we would (and do) use in our own machines. When you look at the Crazy Kong Adapter, you’ll see thick traces and reinforced solder points.

We treat these like a heart transplant for your machine. You wouldn't put a budget pacemaker in a superhero, so why put a cheap adapter on your $500 original PCB?

Ready to Build Something Awesome?

Maybe you’re not just looking for a pre-made adapter. Maybe you’re a tinkerer, a repair wizard, or someone who likes to build custom test rigs.

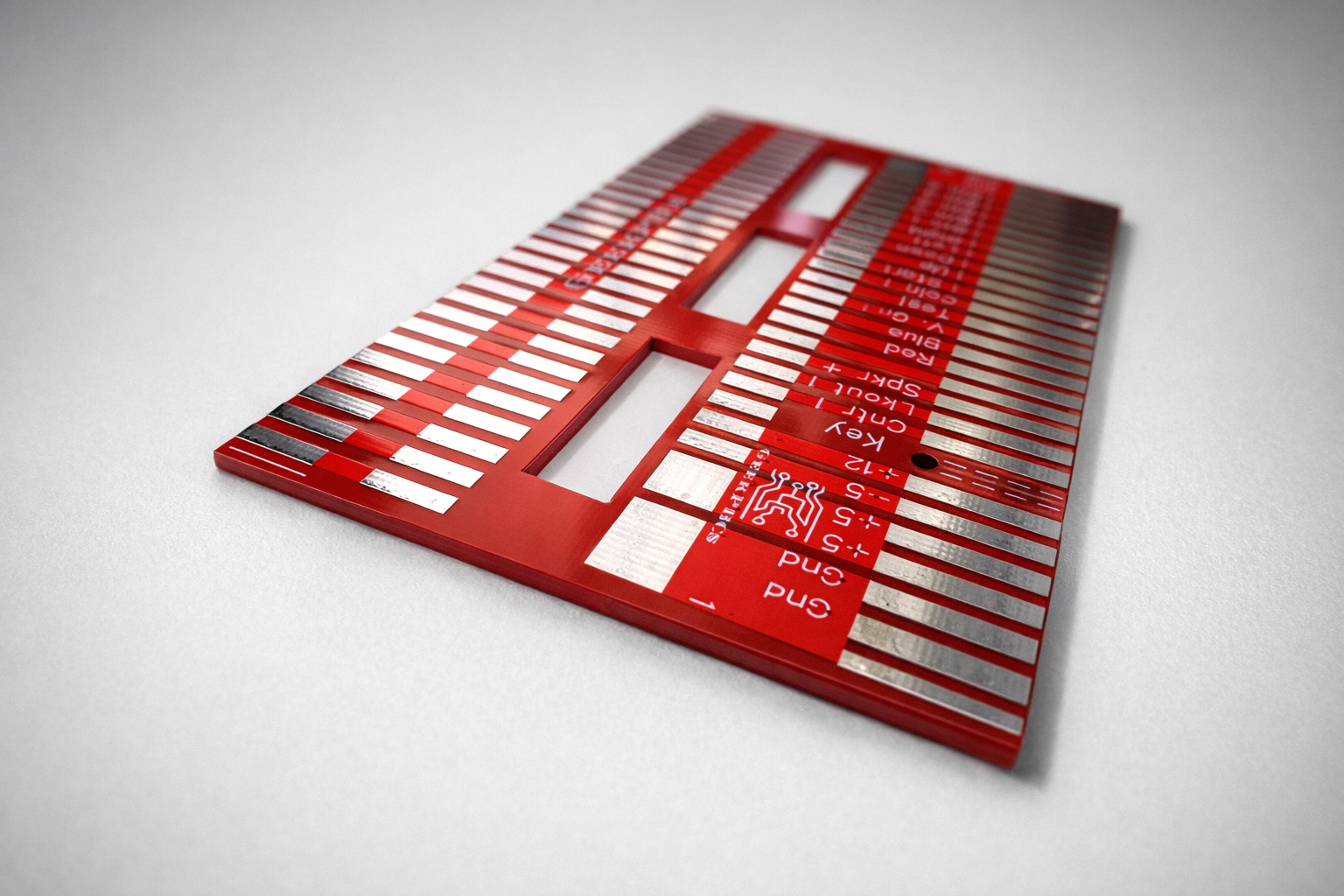

If you're looking to create your own custom solution, we offer universal-extended-jamma-adapter boards, including blank JAMMA adapter "biscuits." These are perfect for the guy who has a one-of-a-kind prototype board or a rare import that needs a custom interface.

FAQ: Frequently Asked Questions (The "Riveting" Stuff)

Q: Will these adapters work with my multi-game board?
A: Usually, yes! Most multi-game boards (like the 60-in-1) use a standard JAMMA pinout. If you have an original Nintendo cabinet and want to run a 60-in-1 without cutting the Nintendo harness, you'd use a Nintendo-to-JAMMA adapter.

Q: I’m worried about plugging it in backwards. Help!
A: We’ve all been there. Most of our adapters are clearly marked for "Component Side" and "Solder Side." Always double-check your orientation before powering up. Mistakes happen, that’s part of DIY, but a little caution goes a long way.

Q: Why is my screen upside down?
A: Ah, the classic "cocktail vs. upright" problem. Many vintage boards have a dip switch to flip the screen. Our adapters pass the video signal through, but they won't magically flip the image for you, you’ll need to check your board’s manual for that!

Q: Do you ship outside of Australia?
A: Absolutely. We help collectors all over the world preserve their hardware. You can check out our shipping info and shop for more details.

The GeekPCB's Promise

Whether you’re looking for a Bally/Stern Rectifier for your pinball machine or a specific JAMMA adapter for a 1982 arcade board, we’ve got your back.

Preserving these machines is a labor of love. Every time we save a cabinet from the wire-cutters, a pixel gets its wings. (Okay, that was cheesy, but you get the point.)

Don't let your classic boards gather dust just because the wiring is a headache. Grab an adapter, plug it in, and get back to chasing high scores. It’s what these machines were built for.

If you have questions about a specific board or need advice on which adapter is right for your "Franken-cabinet," don't hesitate to contact us. We love talking shop.

Enjoy the read? It was riveting information, right? Now go fix something!
