Recently, our GeekPCB technicians received a Williams Time Warp pinball machine at our repair facility. Upon inspection, it was discovered that the machine was equipped with a faulty Rottendog MPU327 -1 replacement board. To better understand the issue, our technicians promptly identified common problems associated with these specific circuit boards. This investigation revealed a design flaw related to the center right-hand mounting hole, which is positioned too close to the metal bracket. Consequently, this flaw leads to a short circuit that damages IC-U17, specifically a 74HCT9114 inverter.

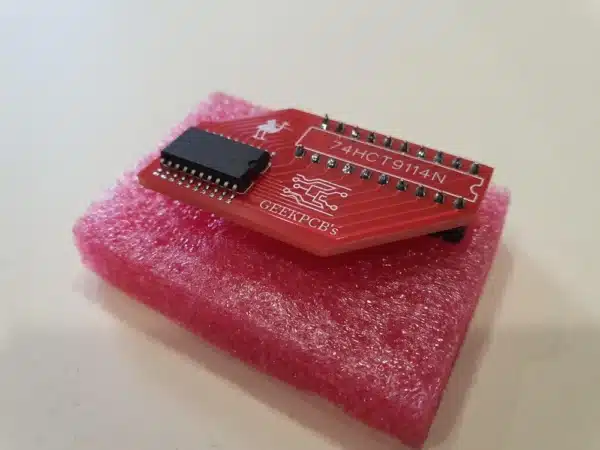

Each daughter board is meticulously assembled by hand and subjected to thorough quality control tests. Once the testing process is successfully completed, the boards are carefully packaged in anti-static bags to ensure their protection.

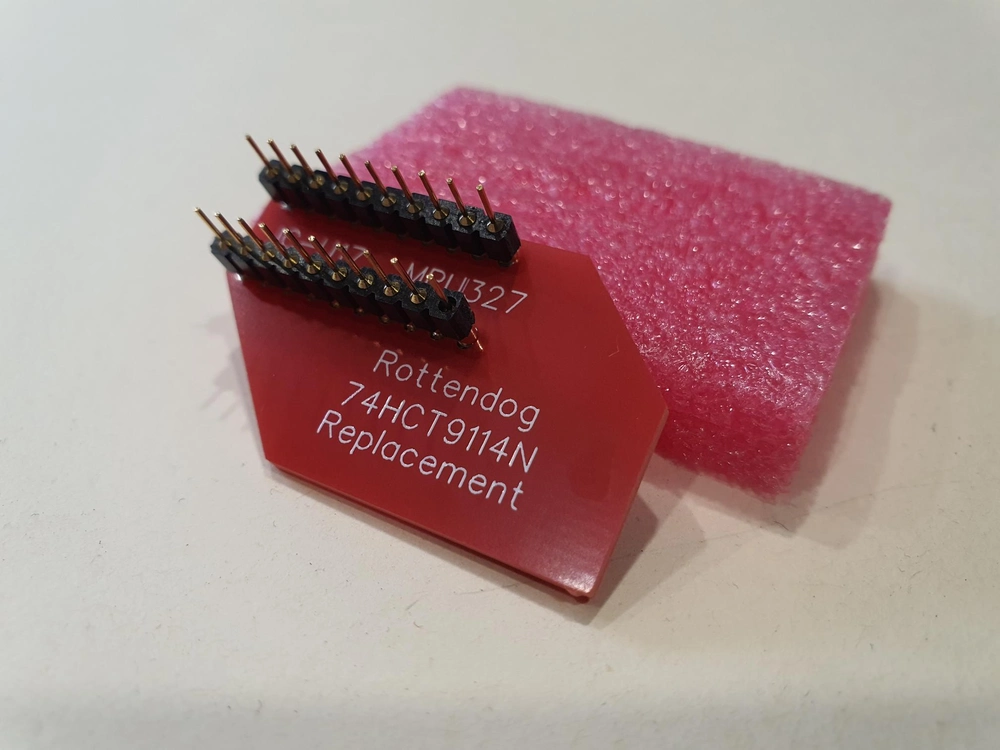

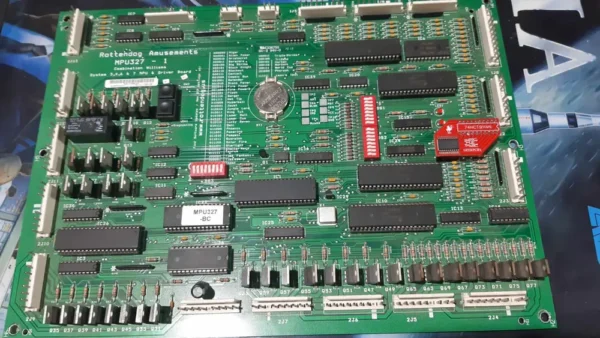

You will receive one ready to install GeekPCBs replacement FIX board only, MPU board is not included. Please view attached images for board compatibility as you require Version ONE.
It is strongly recommended that our customers possess the essential technical competencies and knowledge required to appropriately install and operate our products while maintaining safety. Any damages or injuries incurred as a result of an incorrect installation or use of our products cannot be attributed to our company and we cannot be held liable for such occurrences. It is strongly recommended that customers possess the requisite technical skills and knowledge to safely and correctly install and operate our products. We would like to emphasize that we cannot be held liable for any damages or injuries that may arise due to improper installation or use of our products.
