We recognize the growing difficulty in sourcing the old axial capacitors and high voltage transistors, which often lack suitable replacements.
To address this issue, we have redesigned the Data East Power Supply #520-5000-00 using modern, readily available components. Our updated design includes an advanced Linea 5-volt regulator featuring the standard LM723 chip, and we have further enhanced the circuit with a trim potentiometer that allows precise adjustment of the output voltage between 4.7V and 5.4V.
The board comes with a 4-pin plug (yellow/white wires) and includes the additional plug and pins needed to replace the damaged plug in the GI system wiring.

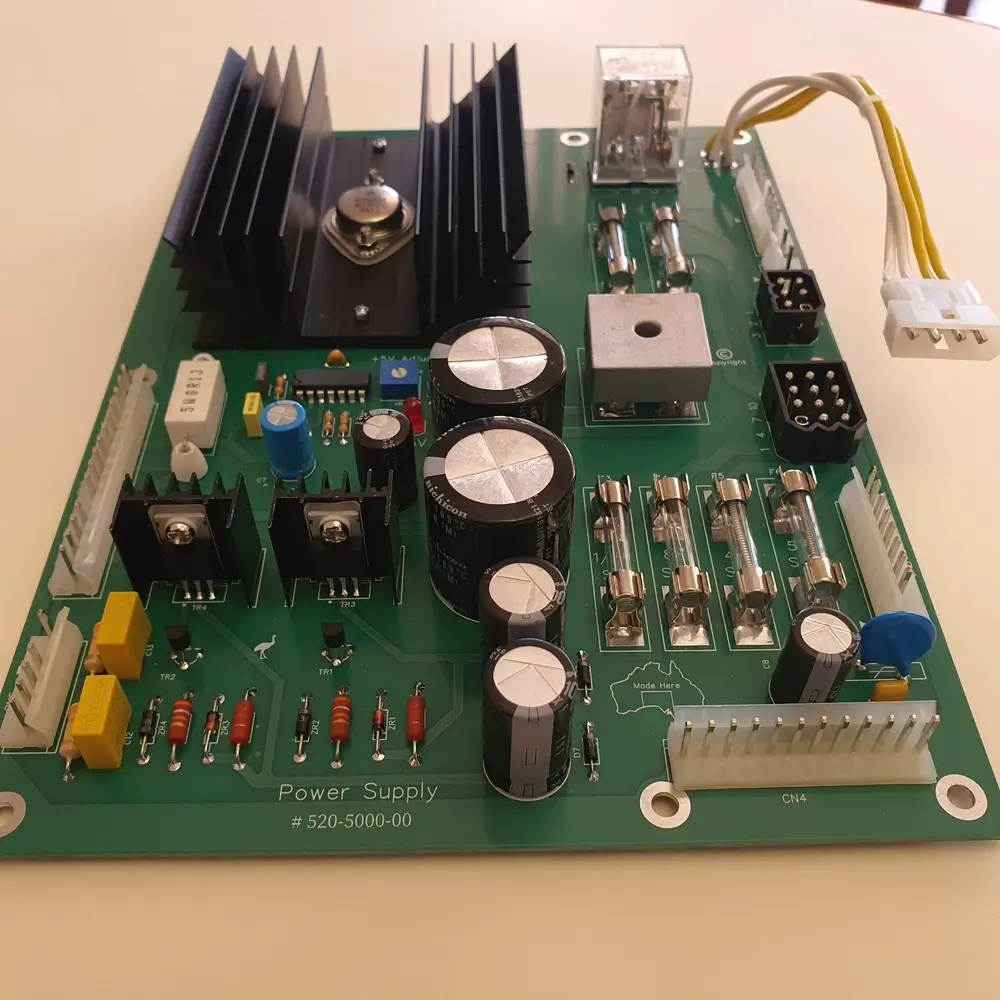

Designed to match the appearance of the original Data East Power Supply, it ensures a seamless Plug ‘n Play installation while preserving the authentic look of your machine.

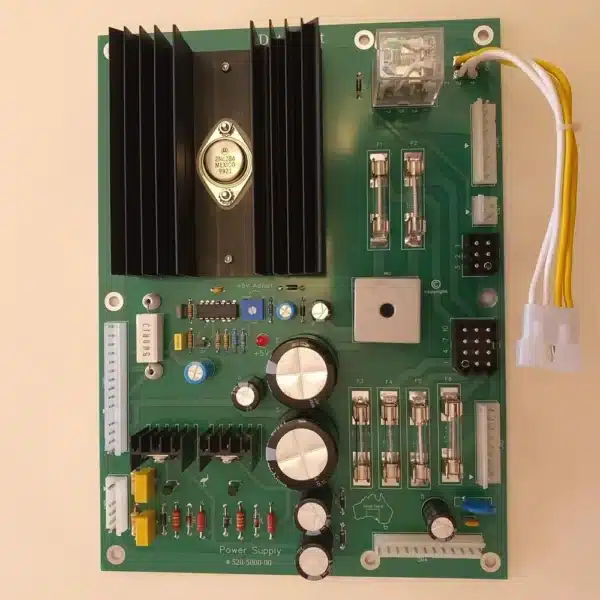

Please ensure that your power supply matches the configuration shown in the image.
If you have any questions or queries, please contact us.
Games suited:
- Back to the Future
- Laser War
- Monday Night Football
- Playboy 35th
- Phantom of the Opera
- Robocop
- Secret Service
- Time Machine
- The Simpsons
It is strongly recommended that our customers possess the essential technical competencies and knowledge required to appropriately install and operate our products while maintaining safety. Any damages or injuries incurred as a result of an incorrect installation or use of our products cannot be attributed to our company and we cannot be held liable for such occurrences. It is strongly recommended that customers possess the requisite technical skills and knowledge to safely and correctly install and operate our products. We would like to emphasize that we cannot be held liable for any damages or injuries that may arise due to improper installation or use of our products.
