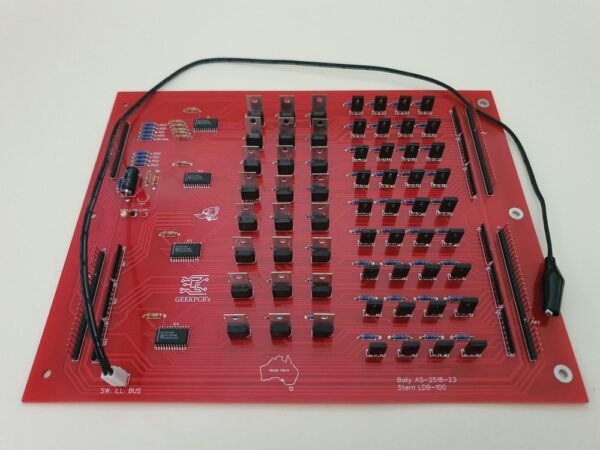

Australian made lamp driver boards designed for your classic Bally and Stern pinball machines. This PCB is complete and ready to install, no need for any DIY assembly.
It replaces Bally® AS-2518-14, AS-2518-23, A084-91612-A000 and Stern® LDB-100 and LDA-100.
The board has been redesigned with a blend of surface mount devices & traditional through hole for the SCR’s and are easily replaced if the need ever arises. Designed to used over-rated the SCR’s giving you the peace and mind in regards to reliability.
3 test points (TP1,TP2 and TP3 ) are found to the center of the board for easy testing, with a +5v led showcasing that the board has power. Please note that this board uses the same size and length headers as the original Bally / Stern board.
The led lamp operates on direct current (dc) voltage and is therefore not recommended for alternating current (ac) voltages. In the market, there are multiple manufacturers of led lamps designed for pinball machines, some of which are offered at a lower cost. However, it is important to note that the cheaper led lamps are only compatible with dc voltage, while others are designed for ac voltages. It is strongly advise purchasing ac voltage led lamps for your pinball machine.
This recommendation is due to the fact that dc voltage led lamps when used on ac voltage will strobe at 25 times per second, this phenomenon known as “50 hertz buzz”, which is caused by the frequency of the sine wave being only on the positive side for half of the cycle. Typically, pinball machines utilize ac voltage for the general illumination (GI) lighting. Our lamp driver board and led mod’ boards are intended solely for feature lamps and will not resolve the “buzzing/strobing” problem caused by the cheaper dc voltage only led lamps.
It is strongly recommended that our customers possess the essential technical competencies and knowledge required to appropriately install and operate our products while maintaining safety. Any damages or injuries incurred as a result of an incorrect installation or use of our products cannot be attributed to our company and we cannot be held liable for such occurrences. It is strongly recommended that customers possess the requisite technical skills and knowledge to safely and correctly install and operate our products. We would like to emphasize that we cannot be held liable for any damages or injuries that may arise due to improper installation or use of our products.
